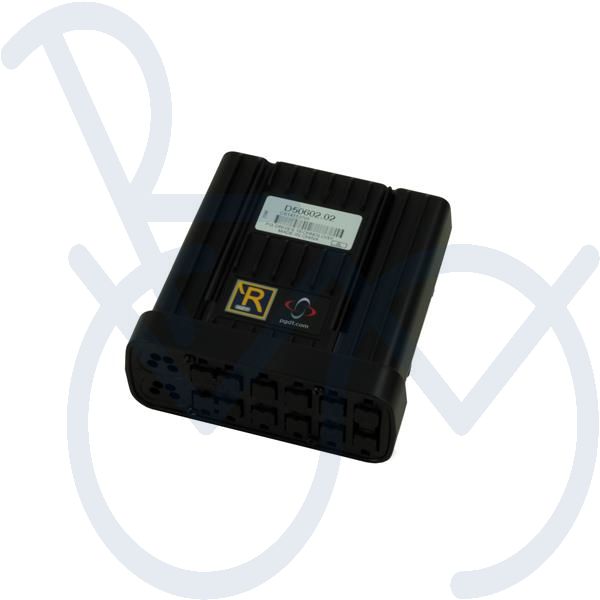

R-net ISM-6L Actuator en Lighting Module

The PG Drives R-net ISM-6L is a smart module designed to control both powered seating systems and lighting functions on medical mobility devices. As part of the modular R-net control system, it enables flexible, safe and programmable actuator management.

The ISM-6L provides six actuator outputs and two lighting circuits. Thanks to its internal intelligence, the module supports programmable memory positions, seat movement restrictions while driving (interlocks), and advanced sequencing logic. Configuration is handled via the R-net PC Programmer.

Whether used for tilt, recline, or elevation, the ISM-6L allows precise and safe seat adjustments tailored to clinical and ergonomic requirements. It can be used with joystick modules such as the CJSM2 or Omni2 for intuitive user feedback and control.

Key features:

˃         Supports up to 6 actuators (12 V or 24 V)

˃         Includes 2 lighting outputs for headlamps or indicators

˃         Programmable memory positions (preset seating functions)

˃         Safety interlocks to restrict movement while driving

˃         Fully configurable via the R-net PC Programmer

˃         Compatible with R-net modules such as CJSM2, Omni2 and SID

Applications:
Ideal for electric wheelchairs and mobility systems requiring advanced seating functions such as tilt-in-space, high/low lift, backrest recline, or complex lighting configurations. Commonly used in specialist seating systems or for users with specific postural needs.

Technical specifications:

˃         6 individually programmable actuator ports

˃         2 dedicated lighting outputs

˃         Compact, robust housing suitable for mounting under the seat or inside the chassis

˃         Powered via the R-net bus (no separate supply required)

˃         IP classification: for dry environments (IPxx)

Note:
Installation and setup must be performed by a qualified technician. Configuration requires the R-net PC Programmer and appropriate dongle/software.
