Dynamic DX-REM48A REV A Master Remote refurbished

The Dynamic DX-REM48A REV A is a Master Remote for power wheelchairs equipped with a Dynamic DX control system. This Plus version forms the user interface of the modular Dynamic DX system together with a DX power module, such as the DX-PMB.

The DX-REM48A features two connections for external switches with standard 3.5 mm jack connectors. This allows users with limited hand function to operate the wheelchair using an additional on/off switch or function switch.

The REV A version is the earlier hardware generation within the DX-REM48A series. This version is suitable as a replacement in existing configurations where a REV A Master Remote was originally installed.

♻️ Refurbished quality

Refurbished modules receive a second life with us. Before a module is supplied again, it is technically inspected and reconditioned where required.

We check, among other things, the operation of the joystick, keypad, charging connector and the overall condition of the module. We also verify that the version and internal configuration correspond with the type being supplied.

This ensures you receive an original Dynamic component that is suitable for reliable reuse.

Because refurbished modules have previously been used, the housing may show minor signs of use or cosmetic marks from its previous service life. The technical condition is our primary focus.

REV A version

The DX-REM48A REV A is the original hardware version within the Plus version of the REM48 series.

This version includes connections for external switches, but offers fewer configuration and programming options compared with the later REV C version.

A DX-REM48A REV A cannot automatically be selected as a replacement for every DX-REM48A or DX-REM48 configuration.

For power wheelchairs with multiple electric functions or more extensive settings, a REV C version may be required due to its greater programming capabilities.

Connections and functions

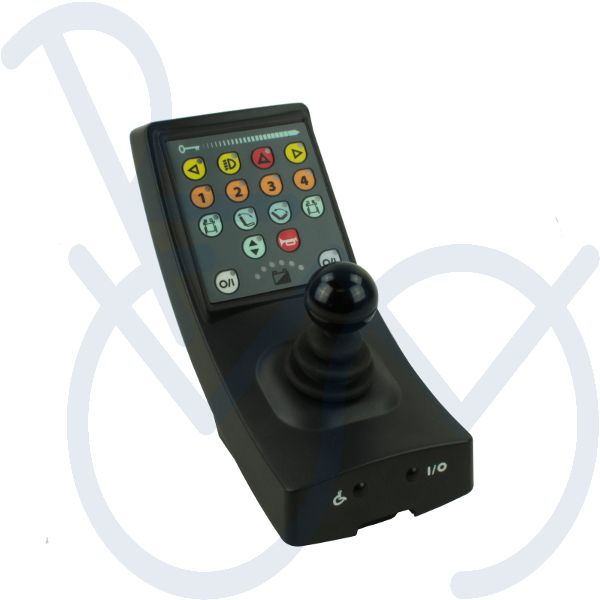

The Dynamic DX-REM48A REV A features:

• 16-button control via keypad;
• LED indicators for the different functions;
• LED battery indicator;
• two connections for external switches with 3.5 mm jack connectors.

The external switch inputs are intended for:

• on/off operation;
• navigating through wheelchair functions, such as driving profiles or lighting (depending on the configuration).

The functions of these switch inputs are predefined and cannot be freely assigned.

Programming and replacement

The DX-REM48A REV A Master Remote is part of a complete Dynamic DX wheelchair control system. After replacement, the module must be programmed for the specific power wheelchair.

The existing settings can often be transferred from the original controller and programmed into the replacement Master Remote.

We can assist with this process if the original controller is sent to us.

For a suitable configuration, we need information such as:

• front-wheel or rear-wheel drive;
• maximum wheelchair speed;
• available electric functions, such as:
  • backrest adjustment;
  • tilt adjustment;
  • seat lift;
  • leg rest adjustment.

Full programming and configuration require Dynamic Wizard software. This software is intended for dealers and specialised technical service providers and is not available for private users.

Compatibility

The Dynamic DX-REM48 was used on various power wheelchairs from the period when the Dynamic DX control system was introduced.

This Master Remote was used on older models from the Puma and Beatle series, including the Booster Puma, the later Moving People / Handicare Puma Yes and the Beatle Yes.

The Beatle Yes was based on a similar concept as the Puma Yes, but featured a different drive configuration with front-wheel drive.

The DX-REM48 REV A is mainly suitable as a replacement when the existing wheelchair configuration was originally built with this older version.

Actual compatibility depends on the complete wheelchair configuration and the installed Dynamic DX modules.

Stock and availability

Refurbished Dynamic DX-REM48A REV A Master Remotes depend on the availability of suitable original modules.

Our refurbished stock changes continuously. If a specific version is temporarily unavailable, we cannot indicate in advance when it will become available again.

Availability depends on the possibility of obtaining suitable modules from the market.

Delivery

• Dynamic DX-REM48A REV A Master Remote refurbished
• Original Dynamic Controls component
• Technically inspected and reconditioned
• 1-year warranty
